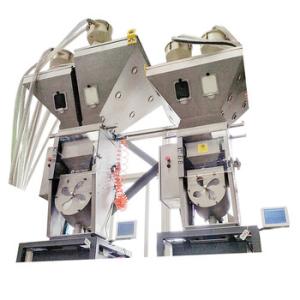

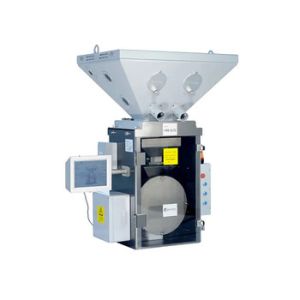

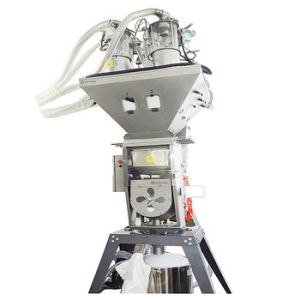

Multiple Components Material Batch Blending Gravimetric Dosing
Mixing System For Plastic Film
1.Products Introduction
Gravimetric Dosing Mixing System under WalthMac is a system which
works as weighing and mixing multiple raw materials in high
precision,replace traditional human-working and other inefficient
mixing methods,greatly improve the production efficiency and
product quality to save cost.
2.Main Structure
| Components | Principle |
| Air Source Processor works | Converting compressed air into kinetic energy |
| Solenoid valve | Providing kinetic energy |
| Display control unit | Showing the cutting accuracy of each component |
| Cylinder | Controlling the knife valve for each silo's feeding |
| Data Acquisition Control Unit | Controlling and collecting the operational information of the
entire machine |
3.Features
- Up to eight components can be mixed
- Feeding error is less than 0.1%
- Lower power consumption
- 10'' inch color touch screen
4.Benefits
- Capacity is 300kg/hr (for this type)
- Weighing sensor in mix chamber make blending be more accuracy
- Stable controlling to cut down the waste
- Reduce the consumption of labours
5.Applications Scope
Gravimetric Dosing Mixing System is suitable for area which produce
the plastic pipes,plastic films,optical cables and production of raw materials etc which has good
flowability.
6.Way of installation
Arranging Gravimetric Dosing Mixing System on the extruder with an
adapter ,and need to ship raw materials once from storage to system
via vacuum loader.
Arranging Gravimetric Dosing Mixing System on the floor,conveying
materials twice,first step is from storage to vacuum loaders,second
step is from bottom hopper of system to vacuum loader upon the
material hopper which set on the extruder.
7.On-sight Application
WBB-H products usually widely used in plastic pipe,plastic
film,cables and other area.
8.Profile of WalthMac
Mianyang WalthMac Technology Co., Ltd. is a national high-tech
enterprise pursuing "product is art". We have set high standards
for product design, internal management, and quality
control.WalthMac has passed the CE,ISO,UNGM etc certifications.Our
products are selling well in domestic and foreign countries.Here
over 800 companies have been cooperated with us.
Achieving a highly intelligent workshop in the future is the trend
of factories in the future, and it is also the parent goal for
Worth to strive for. Worth products focus on helping users achieve
automation throughout the production process, from improving
product quality and saving raw materials to reducing the dependence
on labor throughout the process.
Since extablished in 2009,in these 14 years, we have participated
in plastic and rubber exhibitions in China and other countries such
as Vietnam,Thailand,America,England etc. We are cooperating with
over 800 companies like DEMUKA,GSM etc, and establishing long-term
cooperative relationships with them.
