Thickness Measuring Equipment Pipe Wall Thickness Measuring
Instrument For Plastic Pipe
1.Products Introduction
Pipe Wall Thickness Measuring Instrument includes a word-class processor quickly processing of acquired data
and transmission of data communications.It measures wall thickness
by ultrasonic which makes the measurement results more accurate.It
is a online ultrasonic measurement system for plastic pipe quality
control with higher efffectiveness.It will mark the pipes with
uneven thickness during the production process for subsequent
traceability.
2.Main Structures

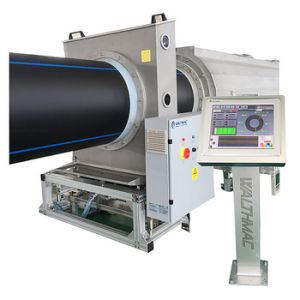

Pipe Wall Thickness Measuring Instrument contains Scanning Box,DSP
Processor, Man-machine Interface and Controller.The specific
procedures are showing as above picture.Core components are
importing from abroad to assure the quality of our machines.
3.Paramter
| Display unit | 12''/15''/21'' true color touch screen |
| The OD measuring range | 0.15-1600mm |
| Control unit | Walthmac DATASE 1000R ultrasonic measurement control system |
| The maxium measuring precision | 0.001mm |
| Power | <30w |
4.Features
- Equip with ultrasonic
- Applicable for different OD measuring of plastic pipe
- Can measure multiple layer of plastic pipe
- Measure the minimum outer diameter is 0.25mm
5.Advantages
- Reduce the risk of problem pipes
- Cut down the cost waste
- Provide the full data of production
- Easy to find the problem pipes by marking the pipes during
producing
6.Applicable Scope
Pipe Wall Thickness Measuring Instrument 0.25mm-1600mm measuring
range, meet the measurement requirements of different products.
Applicable for gas pipe,water supply pipe,drainage pipe and other
plastic pipe production line.
7.The Installation
Pipe Wall Thickness Measuring Instrument can be installed after
vacuum tank or cooling tank due to pipe's shape not change any
more.

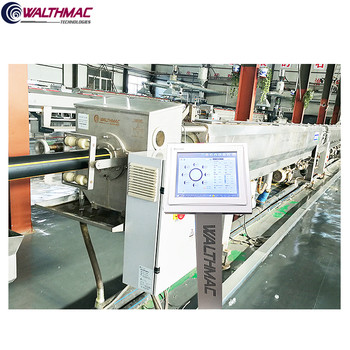

8.On-sight Application
We find some applications using on the factories which sent from
our long-term partners.Machines we sold received good feedback from
our customers and they are willing to cooperate with us for buying
other machines.
9.About WALTHMAC
Mianyang WalthMac Technology Co., Ltd. is a national high-tech
enterprise pursuing "product is art". We have set high standards
for product design, internal management, and quality
control.Established in 2009,but we have served over 800 companies
in the world.
Achieving a highly intelligent workshop in the future is the trend
of factories in the future, and it is also the parent goal for
Worth to strive for. Worth products focus on helping users achieve
automation throughout the production process, from improving
product quality and saving raw materials to reducing the dependence
on labor throughout the process.
Since its establishment for 14 years, we have participated in
rubber and plastic exhibitions in domestic and abroad every year,
cooperating with over 800 companies like DEMUKA,GSM etc, and
establishing long-term cooperative relationships with them.
10.FAQ
Q1. Are you trade company or manfacturer?
A: We are manufacturer who design our own machines to sell in China
and abroad.
Q2.What's the terms of payment?
A:Usually via T/T and prepay
Q3.What is your terms of delivery?
A:EXW,FOB,CFR,CIF are all be accepted.
Q4.What's the warranty?
A: Usually one year
Q5.Will you test machine before export?
A:Yes,of cource
